Weeks Hall (weeks.cosmos-lab.org)

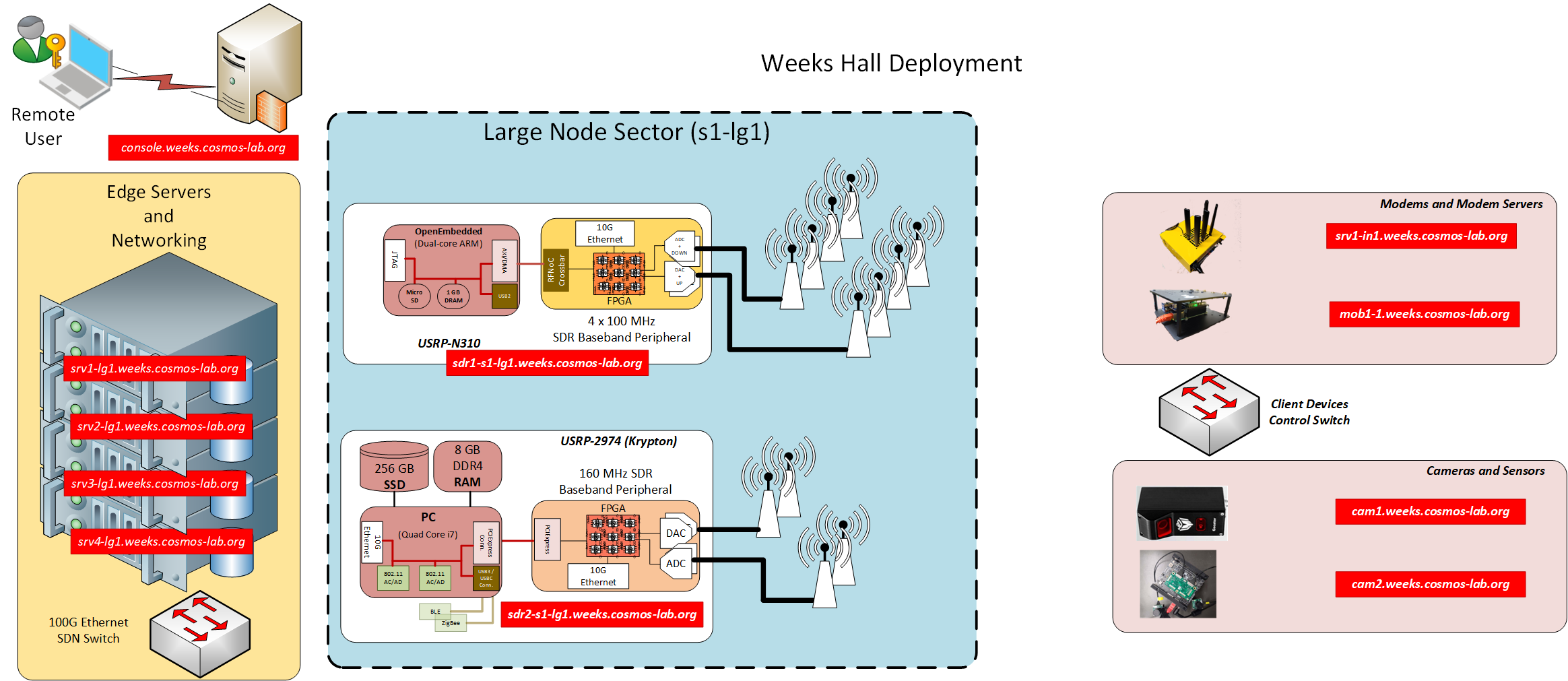

As shown in the figure, one large programmable software defined COSMOS radio node sectors and a pair of small nodes are deployed, in collaboration with Siemens and Rutgers University, in the New Jersey Advanced Manufacturing Institute operated by the Mechanical & Aerospace department at Rutgers. The objective of the this sandbox (Pilot 5G Factory in Weeks Hall) is to allow the design and development of advanced manufacturing techniques that require low latency and high reliability communications integrated with edge computing. The overall goal is to use emerging wireless and edge cloud capabilities to enable speed and flexibility in terms of manufacturing floor reconfigurability.
Weeks Hall resources:
- Ethernet Switch
- Dell Z9100
- Computing Resources:
- 4 high performance compute servers
- SDR Resources
- One sector of a large COSMOS node
- Modems and Modem Servers
- 4th generation (Yellow) node with Simcom SIM8200
- Raspberry Pi with with Simcom SIM8200
- Sensors and Cameras
- Gocator Laser Sensor
- NVIDIA Jetson Xavier node with dual camera
IP Address Assignment
| Device | Control Network | Data Network 1 | Data Network 2 |
|---|---|---|---|
| = Large Node Servers = | |||
| Server 1 | 10.7.12.11 (srv1-lg1) | 10.8.12.11 (srv1-lg1-d1) | 10.9.12.11 (srv1-lg1-d2) |
| Server 2 | 10.7.12.12 (srv2-lg1) | 10.8.12.12 (srv2-lg1-d1) | 10.9.12.12 (srv2-lg1-d2) |
| Server 3 | 10.7.12.13 (srv3-lg1) | 10.8.12.13 (srv3-lg1-d1) | 10.9.12.13 (srv3-lg1-d2) |
| Server 4 | 10.7.12.14 (srv4-lg1) | 10.8.12.14 (srv4-lg1-d1) | 10.9.12.14 (srv4-lg1-d2) |
| = Large Node SDRs = | |||
| USRP N310 (S1) | 10.7.12.21 (sdr1-s1-lg1) | 10.8.12.21 (sdr1-s1-lg1-d1) | 10.9.12.21 (sdr1-s1-lg1-d2) |
| USRP 2974 (S1) | 10.7.12.22 (sdr2-s1-lg1) | 10.8.12.22 (sdr2-s1-lg1-d1) | 10.9.12.22 (sdr2-s1-lg1-d2) |
| = Modems and Modem Servers = | |||
| Yellow Node | 10.7.12.31 (srv1-in1) | 10.8.12.31 (srv1-in1-d1) | - |
| Raspberry Pi | 10.7.12.32 (mob1-1) | - | - |
| = Camera and Sensor Devices = | |||
| Gocator | 10.7.12.31 (cam1) | - | - |
| Xavier | 10.7.12.32 (cam2) | - | - |
