¶ Resources, Services and APIs
Everything that Experimenters can interact with is referred to as a Resource
To run an experiment, you will configure the resources that you need.
This includes:
* Compute
- capable of having disk images loaded and saved
- users can log into them with ssh after provisioning
* Software Defined Radios
- FPGA images loaded with UHD
- Radio paramaters controlled with UHD or other API
* RF Frontends
- api to control switches, filters, and gain
* Network switches
- connectivity defined with API
* Optical Devices
- space switch, roadms, and other devices controlled with optical config service
Note, some resources will fall into more than one of the above categories, such as a compute machine with integrated SDR, like the USRP 2974
¶ RF Control
A number of services is availabe for experimenters to manage various aspects of domains and resources. These include:
- RF Switch management service: service for management of RF switches in various sandbox nodes.
- Node RF control service: management of the RF front-end in large and medium outdoor nodes.
- XY Table service: controls the movable XY & angle platorms in Sandbox 1.
¶ SDR Control
* USRP 2974 Driver Installation and Access
* USRP N310 Configuration and Access
¶ Compute Control
¶ Network Control
¶ Optical Control
¶ Resources
REFERENCE: J. Yu, C. Gutterman, A. Minakhmetov, M. Sherman, T. Chen, S. Zhu, G. Zussman, I. Seskar, and D. Kilper, “Dual use SDN controller for management and experimentation in a field deployed testbed,” in Proc. OSA OFC’20, T3J.3, 2020.
CONTACT: Jiakai Yu
More details in the attached slides.
¶ SDN controller architecture

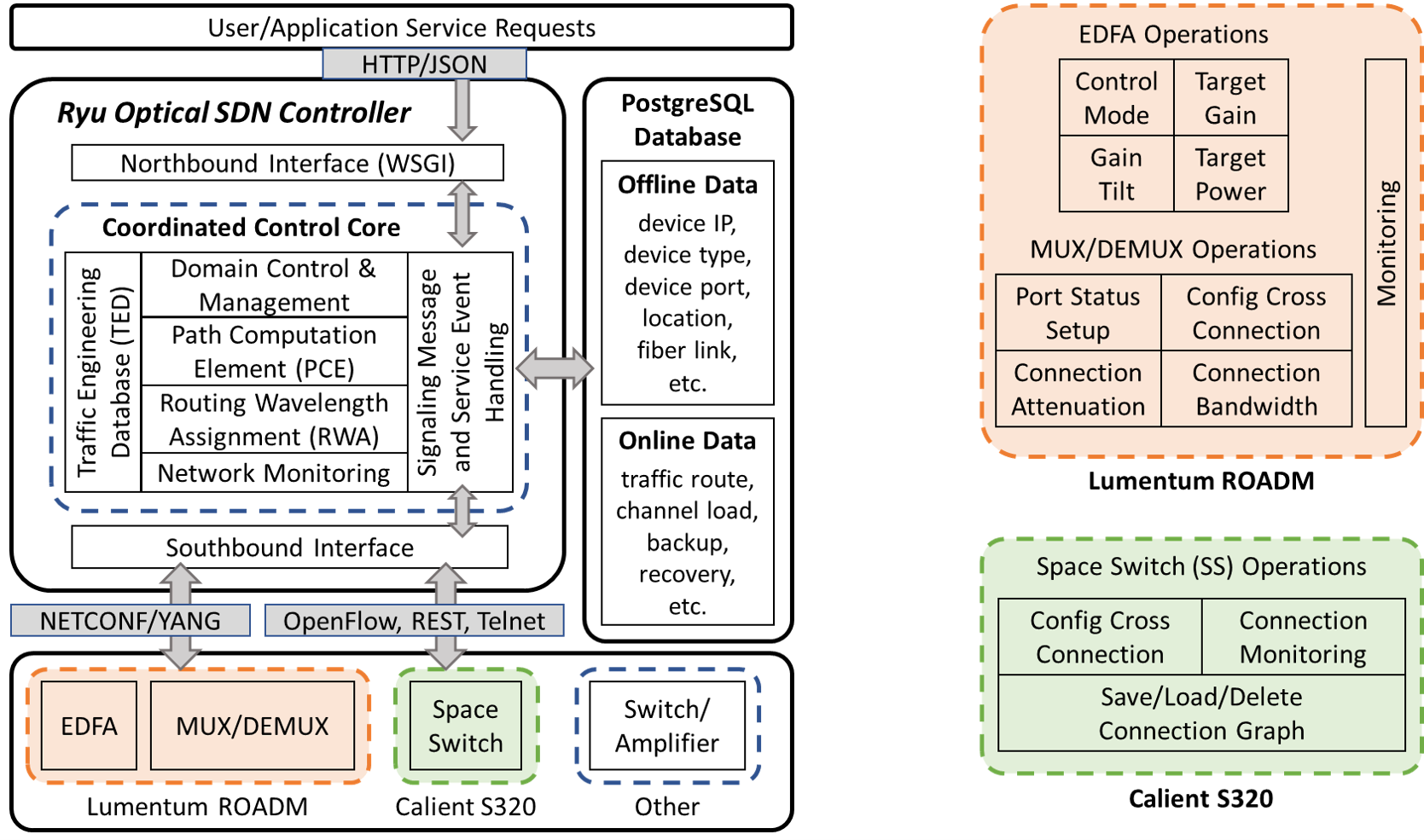

SDN controller core functionalities:
 |
|---|
¶ Transmission setup

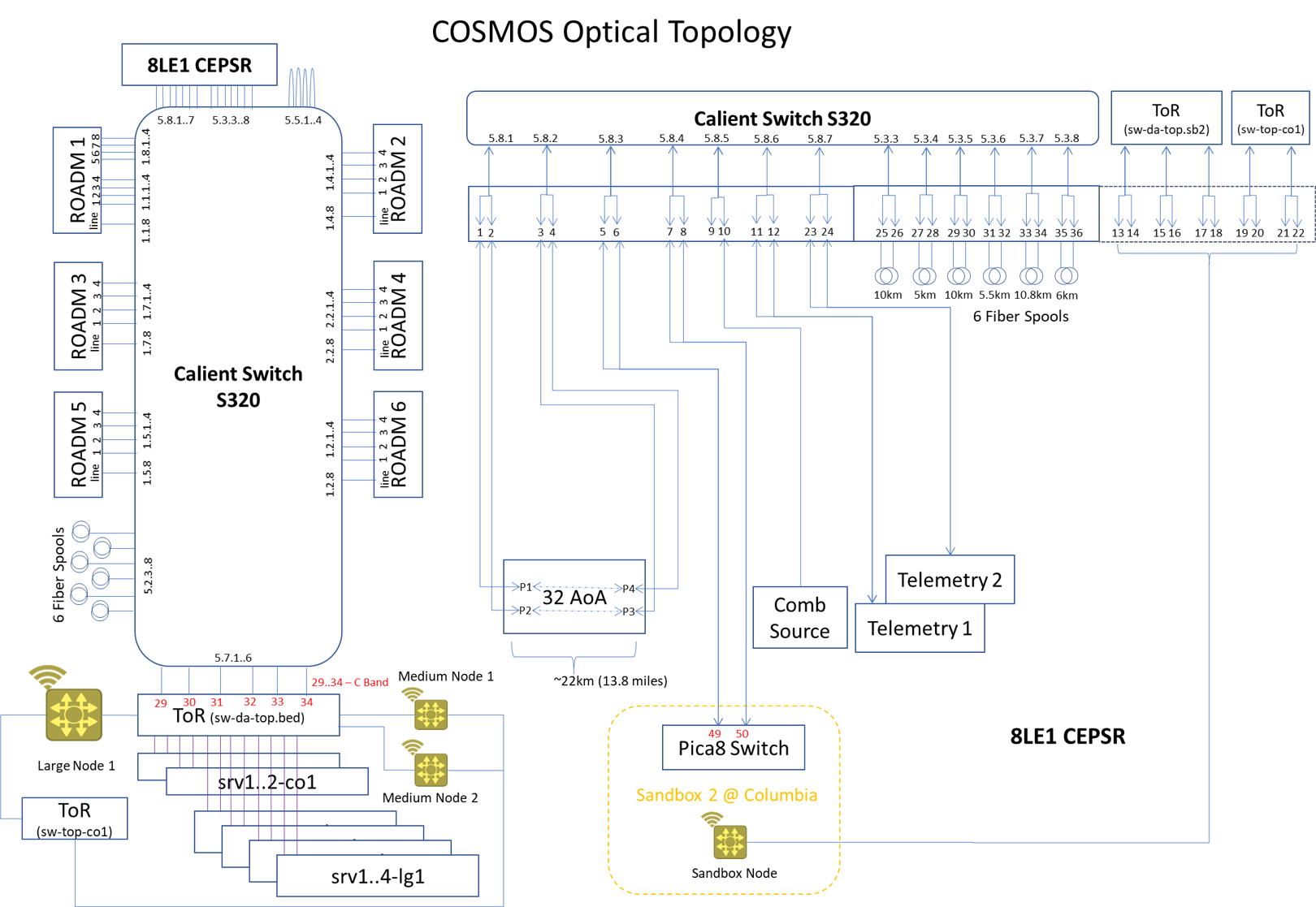

COSMOS optical topology overview:
 |
|---|

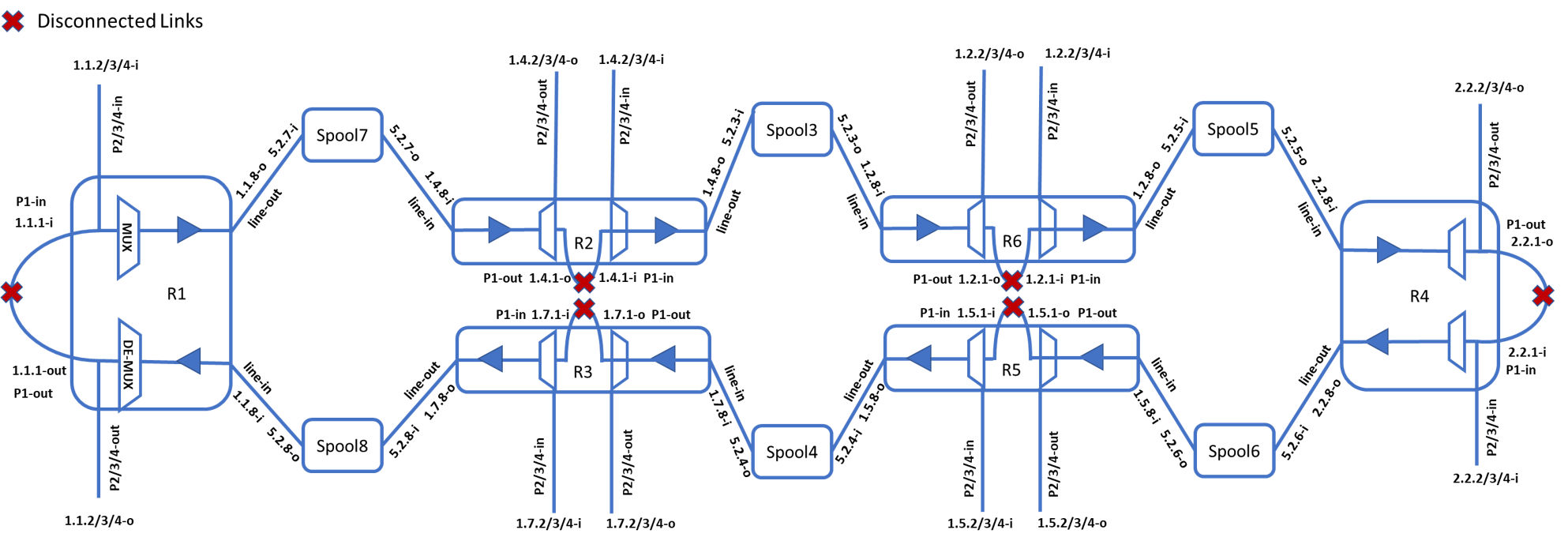

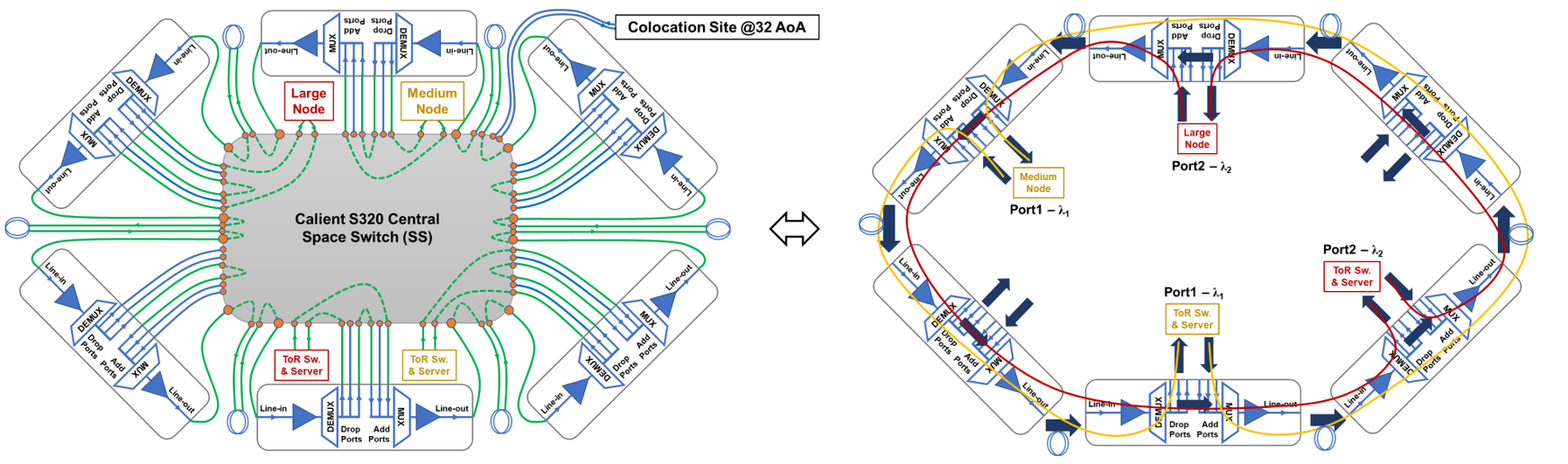

One of the default COSMOS Transmission setups is the ring network:
 |
|---|
 |
¶ User JSON format request examples
¶ Add a light-path through multiple ROADMs with RWA
{"Request_Class": "addPathConnection",
“direction": "bi-direction",
"source_node_ip": "1.1.1.1",
"source_node_port": "1",
"destination_node_ip": "1.1.1.2",
"destination_node_port": "1",
"connection_name": "cosmos",
"connection_id": “1",
"channel_id": "50"}
¶ Monitor WSS connection information of a ROADM
{"Request_Class": "MonitorWSS",
"node_ip": "1.1.1.1"}
¶ Configure a single ROADM WSS connection
{"Request_Class": "ConfigWSS",
"node_ip": "1.1.1.1",
"name": "cosmos",
"module_id": "2",
"connection_id": "1", ’
"input_port": "5101",
"output_port": "5203",
"start_freq": "194600.00",
"end_freq": "194650.00",
"attenuation": "4.0",
"status": "in-service",
"block": "false"}
¶ Set up cross-connections in Calient S320
{"Request_Class": "SetupCRS",
"crs": ["5.7.6>5.8.5","5.7.7>5.8.6"]}
